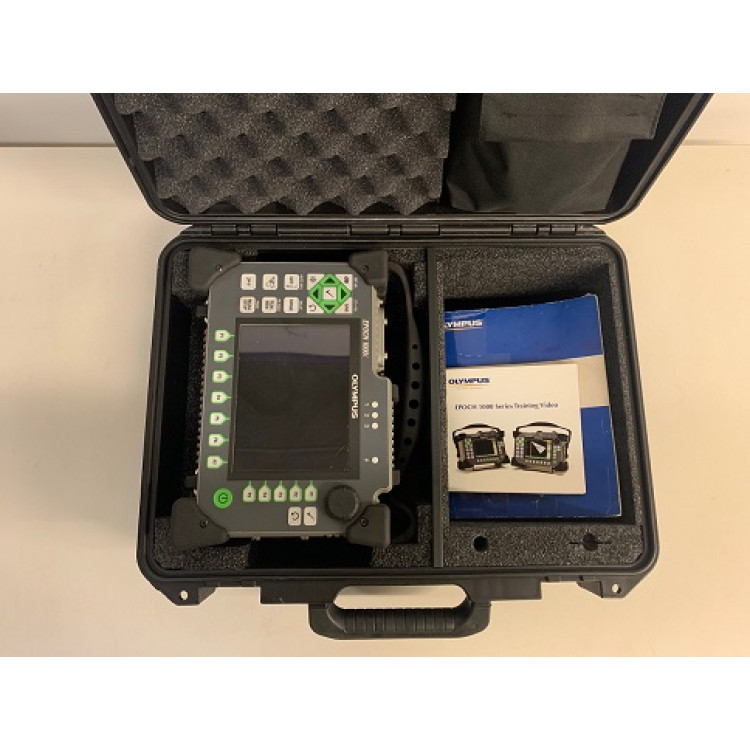

Used Olympus EPOCH 1000i Ultrasonic Flaw Detector

The EPOCH 1000 is an advanced conventional ultrasonic flaw detector that can be upgraded with phased array imaging at an authorized Olympus service center. Key features include: EN12668-1 compliant, 37 digital receiver filter selections, and 6 kHz pulse repetition rate for high speed scanning. The EPOCH 1000 Series Digital Ultrasonic Flaw Detectors combines the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The EPOCH 1000, 1000 iR and 1000 i feature a new horizontal case style with full VGA display, knob and navigation arrows for parameter adjustment, and full EN12668‑1 compliance. The advanced conventional ultrasonic functionality of the EPOCH 1000 series is augmented in the EPOCH 1000 i with phased array imaging capabilities.

Features Epoch 1000 :

• Available with Phased Array Imaging Package
• EN12668-1 compliant
• 37 digital receiver filter selections
• 6 kHz pulse repetition rate for high speed scanning
• Encoded or time-based C-scan option
• Automatic phased array probe recognition
• Intuitive wedge delay and sensitivity calibration for all focal laws
• Programmable analog/alarm outputs
• Designed for IP66 environmental rating
• Horizontal design with navigation panel and knob parameter adjustment
• Digital high dynamic range receiver
• Full VGA sunlight readable display
• ClearWave visual enhancement package for conventional A-scan interpretation
• SureView visualization feature
• Reference and measurement cursors
• Standard dynamic DAC/TVG
• Standard onboard DGS/AVG
