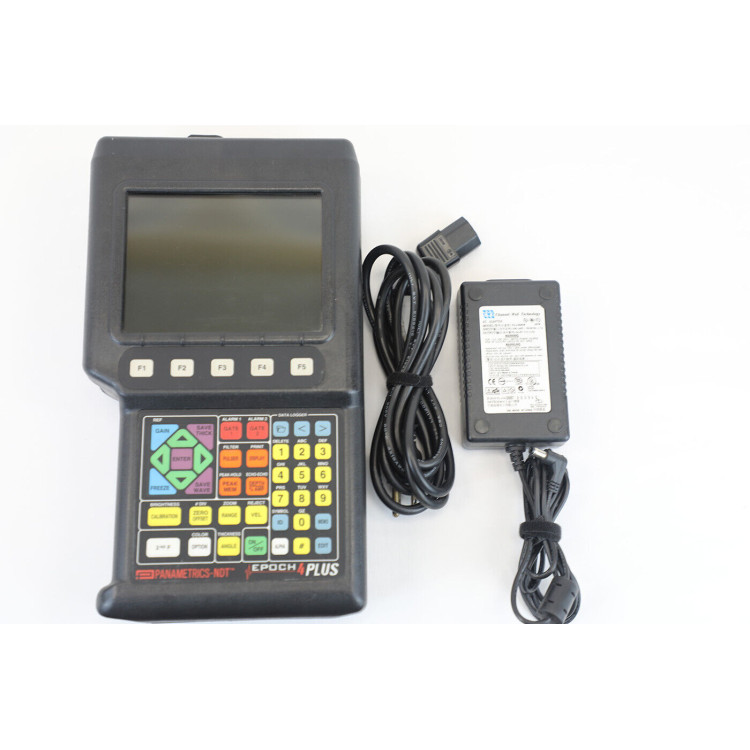

Olympus Epoch 4 PLUS Ultrasonic Flaw Detector

The Panametrics-NDT EPOCH 4 is an advanced digital ultrasonic flaw detector that combines powerful, fully featured measurement capabilities, a comprehensive internal datalogger, and a wide range of software options to solve many demanding inspection problems.
Signal processing features include a 25 MHz bandwidth to permit testing of thinner materials, a selectable square wave pulser to optimize penetration on thick or attenuating materials, and narrowband filters to improve signal-to-noise ratio in high gain applications. The EPOCH 4 incorporates rugged packaging and a conveniently organized direct-access keypad.

Features:

Customizable narrowband filtering
Selectable, tunable square wave or negative spike excitation pulser
Light, ergonomically designed (5.7 lbs / 2.6 kg)
Fast minimum 60 Hz display update rate
High-power NiMH battery
Large, bright, high-resolution ELD with full/split screen views
Automated transducer calibration
400" (10,000 mm) full screen range at longitudinal velocity of steel
Superior minimum range capability (0.038" or 1 mm full scale at longitudinal velocity of steel)
Display Freeze holds waveform and soundpath data
Soundpath data viewable in inches, millimeters, or microseconds
Peak Hold and Peak Memory
RF display mode
Alarms, threshold positive/negative, or minimum depth
Dual Gate with Echo-to-Echo measurements
Security Key enables remote upgrade or software options

Includes :
