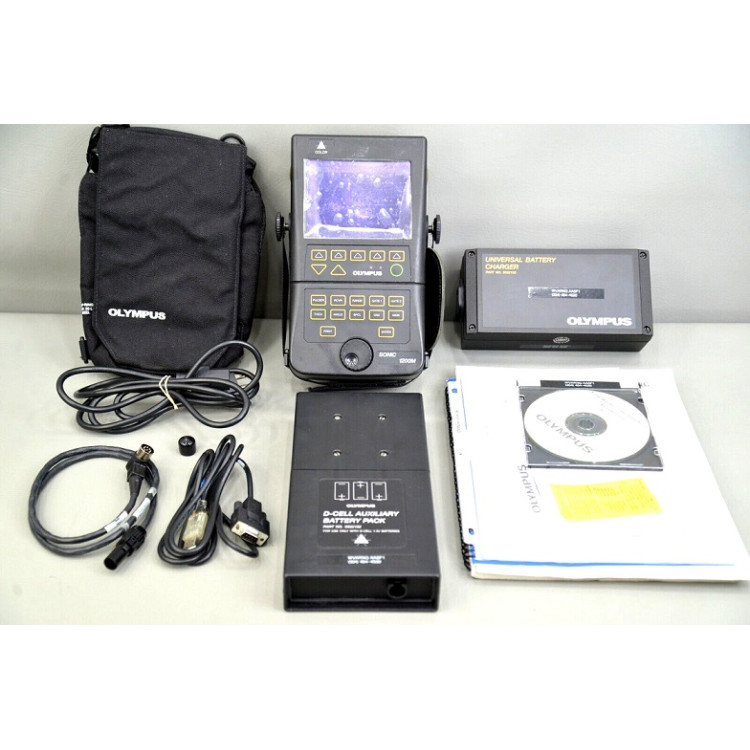

Olympus Sonic 1200M Ultrasonic Flaw Detector

The Sonic 1200M is an advanced lightweight digital ultrasonic flaw detector incorporating our exclusive modular display design for simplicity of operation. It has various innovative design features such as an uncluttered keypad, rotating Smartknob™, customer interchangeable displays, and PowerLink technology making it extremely simple and intuitive to operate.
The Sonic 1200M (NSN: 6635-01-530-7826) incorporates all of the advanced features of the Sonic 1200HR+, including high resolution thickness gauging with readings down to 0.0050 inches, Distance Amplitude Correction (DAC), dual flaw gates, data logging of up to 5000 readings, narrow band receiver for enhanced signal to noise ratios, PowerLink transducer recognition, VGA output to heads-up display or monitor, and tunable square wave pulser.
Additionally, the Sonic 1200M includes a interface following gate for immersion and bubbler applications, selectable negative spike pulser/tunable square wave pulser for the ultimate in resolution and power, display average, display persist, 4 kHz pulser repetition rate, and new Foreign Object Debris (FOD) and anti-marring case.

Features

New Foreign Object Debris (FOD) free and anti-marring case design
Lightweight, 3.8 lbs. (1.72 Kg)
Selectable Spike/Square Wave Pulser
Interface Sync (Sweep and Gate)
Rep rate increased to 4 kHz
0.5 & 3.5 MHz Narrow Band Tuned Receiver
Display Persist
Display Average
Customer interchangeable displays:
- Hi-Brite Electroluminescent
- Monochrome Liquid Crystal
- Color Liquid Crystal
VGA output for heads-up display or external monitors and projectors
Single Li-Ion operation or optional remote battery packaging
10+ hour battery run time
PowerLink Technology - automatic transducer recognition and instrument set-up
24 hour loaner guarantee
