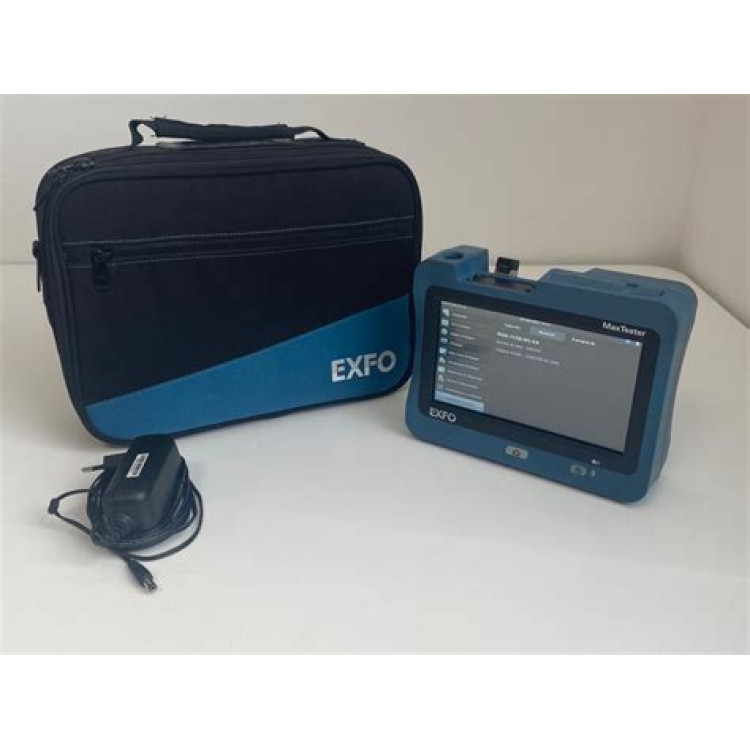

Exfo Max Tester 715B iOLM SM Fiber OTDR
MAX-715B OTDR/iOLM is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers
Specifications :
- Interfaces: Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s
- Storage : 2 GB internal memory (20 000 OTDR traces, typical)
- Batteries : Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
- Power supply: Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
- Wavelength (nm) : 1310 ± 30/1550 ± 30/1625 ± 10
- Dynamic range (dB) : 30/28/28
- Event dead zone (m) : 1
- Attenuation dead zone (m) : 4
- PON dead zone (m) : 35
- Distance range (km) : 0.1 to 160
- Pulse width (ns): 5 to 20 000
- Linearity (dB/dB) : ±0.05
- Loss threshold (dB) : 0.01
- Loss resolution (dB): 0.001
- Sampling resolution (m) : 0.04 to 5
- Sampling points : Up to 256 000
- Distance uncertainty (m) : ±(0.75 + 0.0025 % x distance + sampling resolution)
- Measurement time : User-defined (maximum: 60 minutes)
- Reflectance accuracy (dB) : ±2
- Typical real-time refresh (Hz) : 3
Includes :
- EXFO MAX-715B-M1-EA Fiber OTDR
- Ethernet Cable
- (2) SM SC-SC APC Fiber Cables
- Stylus
- AC Adapter/Charger
- Power Cord
- User Manual On CD-ROM
- Carrying Case
- 1 Year Warranty
Exfo Max Tester 715B iOLM SM Fiber OTDR
- Brand: Exfo
- Product Code: CT0108
- Availability: In Stock
-
$2,199.00
- Ex Tax: $2,199.00
