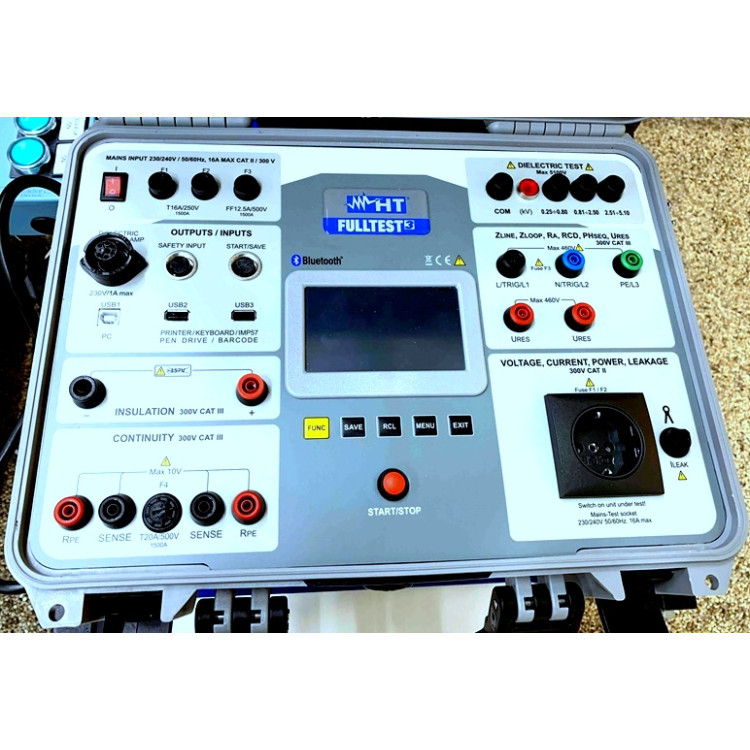

Flash Sale ! HT Instruments FULLTEST3 Multifunction Tester Kit only USD $3500.00

Stock : Available

Condition : New

Warranty : 1 Year

Specifications :

• Continuity of protection conductors with 200mA

• Continuity of protection conductors with I>10A, V<12V AC

• Continuity of protection conductors with I>25A, V<12V AC

• Insulation Resistance with 100,250,500,1000VDC test voltage

• Withstanding test with test voltage programmable from 250V to 5100V AC

• Discharging time test on internal capacitance and on power supply plug

• Leakage/absorbed and power on the test socket

• Leakage current with external clamp (HT96U optional accessories)

• Test on RCDs type A, AC, B General, Selective, Delayed up to 1000mA

• Line/Loop impedance and Ipsc calculation

• Line/Loop impedance with high resolution (with IMP57 optional accessories)

• Test on MCB protection with curve B, C, D, K and Fuse type gG and aM

• Selection of length, cable type, insulation of cable, tripping time of protection device

• Global earth resistance without RCD tripping

• Phase sequence indication

• TFT display with touch-screen

• Programmable timer on tests

• Programmable thresholds on measurement

• Internal memory

• USB interface for PC connection

• USB interface for keyboard, printer and barcode reader connection
