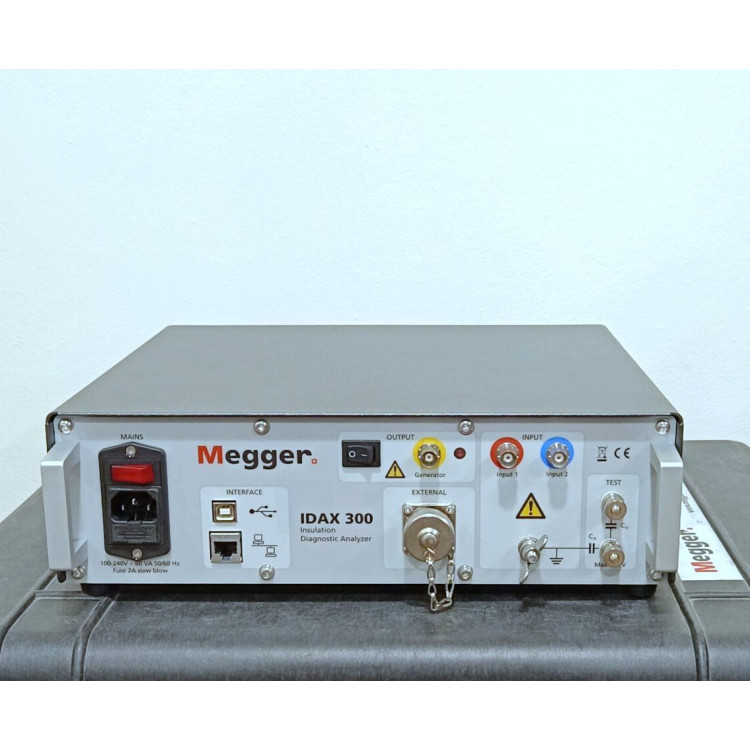

Hot Sale ! Megger IDAX 300 Insulation Diagnostic Analyzer Kit only USD $8000.00

Ready Stock

1 Year Warranty

Specifications:

• Output: 0 – 200 Vpeak, 0 – 50 mA peak

• Capacitance Range: 10 pF – 100 μF

• Dissipation Factor Range: 0 - 10 (with retained accuracy of capacitance; otherwise higher)

• Power Factor Range: 0 - 1 (with retained accuracy of capacitance; otherwise higher)

• Max AC Interference: 1 mA, 1:10 SNR (IDAX)

• Max DC Interference: 2 μA (IDAX)

• Test Modes: UST-1, UST-2, UST-1+2, GST, GST-Guard-1, GST-Guard-2, GST-Guard-1+2

• Measurement Channels: 3 (Channel 1, Channel 2, Ground)

• Computer Interface: External PC (IDAX 300); Built-in computer (IDAX 350)

• Software: State-of-the-art software for automated analysis

• Dimensions: 335 x 300 x 99 mm (17.7" x 6.3" x 16.1")

• Weight: 4.9 kg (11 lbs)
