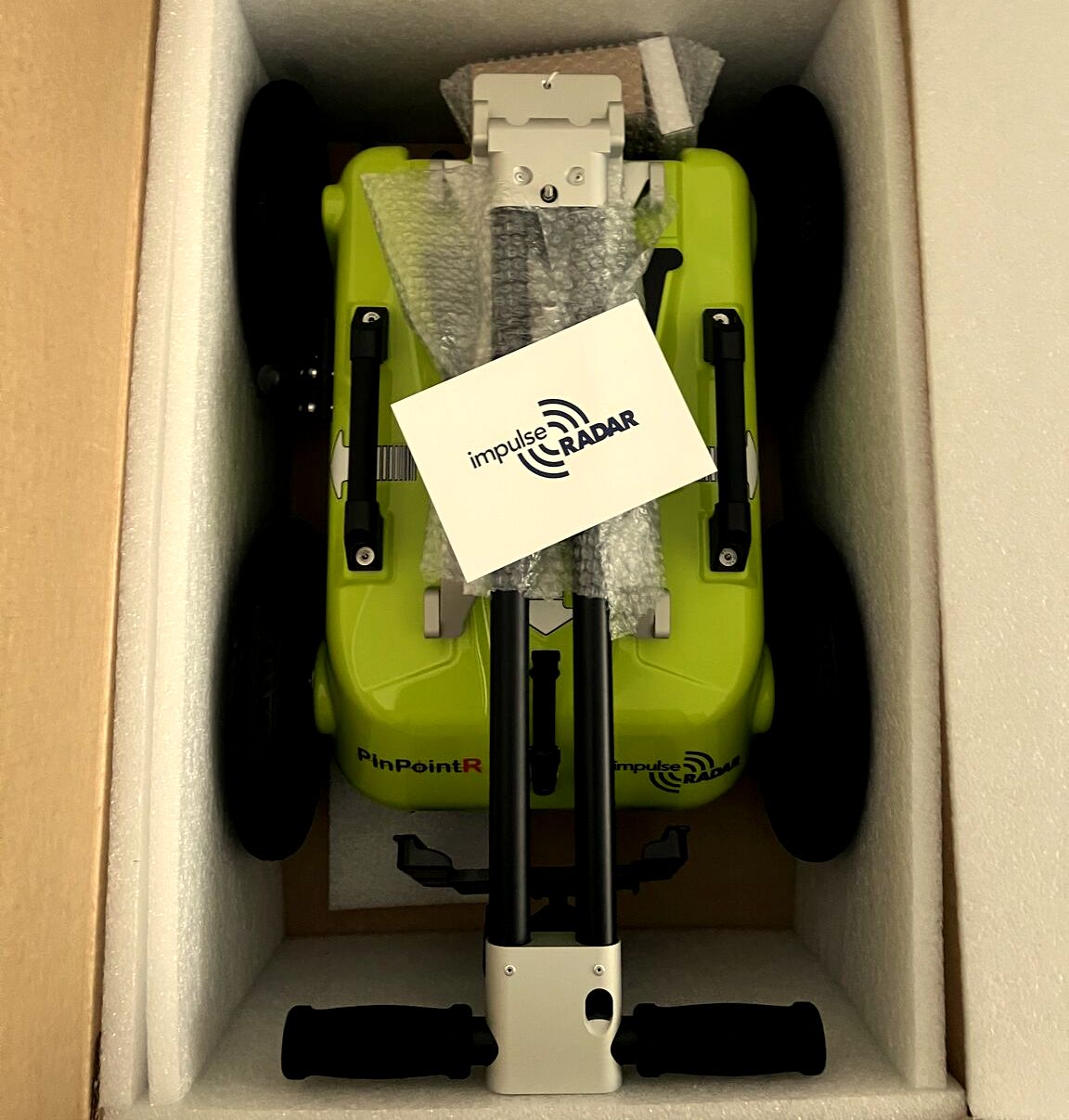

Impulse Radar PinPointR GPR Utility Locator Kit

Specs :

Center frequency : Ch-1: 400 MHz / Ch-2: 800 MHz
Signal to noise ration (SNR) : >100 dB
Significant/number of bits : >16 bitSensor: -40°F to +122°F (-40°C to +50°C)
DVL: +23°F to +122°F (-5°C to +50°C)
Scan/second : >800
Survey speed : >130 km/h (80.7 mph) @ 5 cm point interval
Time window : 388 ns (LF) / 194 ns (HF)
Bandwidth : >120%, fractional, -10 dB
Acquisition mode : Wheel, time or manual
Positioning : Wheel encoder, internal DGPS, external GPS (NMEA 0183 protocol)
Power supply : 12 V Li-Ion rechargeable battery, or opt. ext. 12V DC source
Power consumption : 1.3 A
Operating time : 7 hours
Dimensions : 17.5” x 14” x 7.6” (antenna)
Weight : 14 lbs. (antenna – including battery)
Operating temperature : 7.6°F to +122°F (-20°C to +50°C)
Environmental : IP65 rated
Regulatory certification : Approved (FCC, CE & IC)
CART:
Dimensions (folded for transport) : 34.25” x 21.25” x 14.6”
Dimensions (when in use) : 39.75” x 21.25 x 40.55”
Wheels : 12.4” (off-road style)
Weight 28.2 lbs. (Cart only), 44 lbs. (Cart, Antenna & Tablet)
