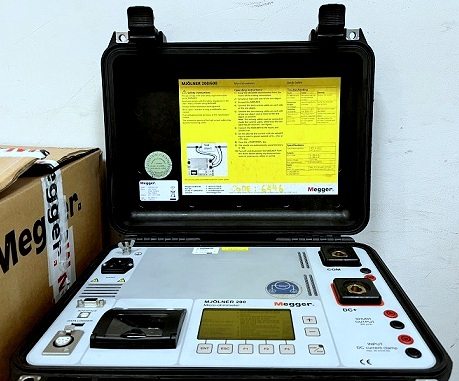

Get Special Discount Megger Mjolner 200 Digital Micro-Ohmmeter Test Kit For Electrical Only USD $3700.00
Warranty : 1 Year
Used Like New Condition
Specifications Product:
Output Current: True DC current from 5 to 200 A, adjustable in 1 A steps (capable of 200 A continuously).
Measurement Range: 0 to 999.9 mΩ with a resolution down to 0.01 µΩ (depending on the measurement range).
Max Output Voltage: 5.0 V DC (at 205 A).
Safety: Patented DualGround™ technology for safer testing without removing earth/grounding connections.
Power Supply: 100–120 / 200–240 V AC, 50/60 Hz
Display: 5-inch IPS touch screen (800 × 480).
Environmental: IP40 (lid open), IP63 (lid closed).
Operates in : -20 °C to +50 °C (-4 °F to +122 °F).
Data Storage/Interfaces: USB interface, optional RS232, and data logging capabilities.
Weight: 7.3 kg (16.1 lbs) for the instrument only; 14.5 kg (32 lbs) including cables and soft case.
Dimensions: 410 x 330 x 175 mm (16.1” x 13” x 6.9”).
