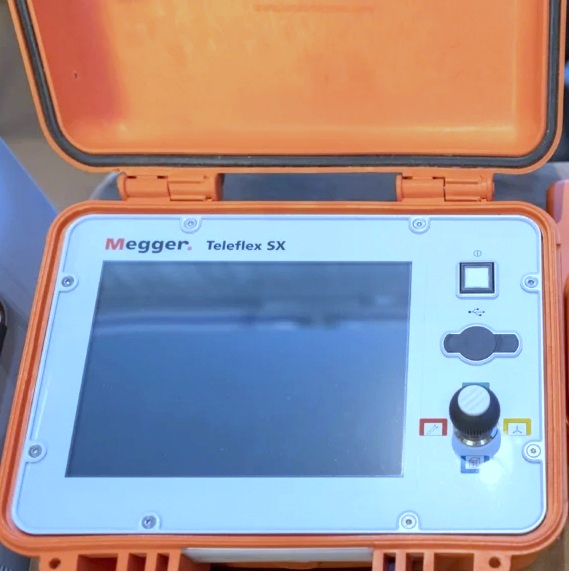

Get Special Discount Megger Teleflex SX-1 Portable Time Domain Reflectometer Only USD $9800.00
Warranty : 1 Year
New Condition
Specifications Product:
Operating temperature: – 10 °C to + 50 °C (14 °F to +122 °F)
Storage temperature: – 20 °C to + 60 °C ( -4 °F to +140 °F)
Pulse generation: Unipolar
Pulse amplitude: 50 V fixed
Pulse width: 20 ns to 10 μs
Measuring range XR: 20 m … 160 km at VOP = 80 m/μs
Resolution: 0.1 m at VOP = 80 m/μs
Accuracy: 0.1%
Timebase accuracy: Better than 100 ppm
Data rate: Faster than 400 MHz
Dynamic range: More than 96 dB
ProRange: More than +22 dB (distance-dependent de-attenuation)
Output impedance: 50 Ω, no dedicated internal compensation necessary
ARM® trigger: ΔU trigger technology with automatic adjustment
External voltage: < 400 V, only with separation filter
Memory: 4 GB for program and data
Connections: USB, BNC, CAN
Protection class: IP 65 enclosed, IP 54 open
Battery: 12 V Li-Ion rechargeable battery
Dimensions (W x H x D): 362 x 195 x 305 mm (14.2 in. x 7.6 in. x 12 in.)
Weight: 7.8 kg (17.1 lbs)
