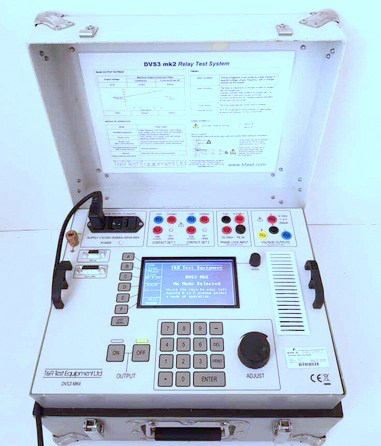

T&R Test Equipment DVS3 MKii Relay Test Set System

Get Special Discount T&R Test Equipment DVS3 MKii Relay Test Set System Unit Only USD $6850.00

Warranty : 1 Year

Used Like New Condition

Specifications Product:

Voltage range: 0–133 V phase-to-neutral
Voltage with VT box: 0–266/292 V phase-to-neutral
Maximum power: 45 VA per phase
Frequency resolution: 0.01 Hz (40–99.99 Hz), 0.1 Hz (100–999.9 Hz)
Frequency accuracy: ±0.01% of reading + 1 digit
Phase resolution: 0.1°
Harmonic distortion: Very low distortion digital waveform generation
Timing system; Integrated multifunction timer
Display; Large backlit LCD with vector diagram
User interface: Keypad and digital rotary control
Phase outputs : Independently adjustable voltage and phase angle
