Beamex MC5 Multifunction Process Calibrator Fluke Leads

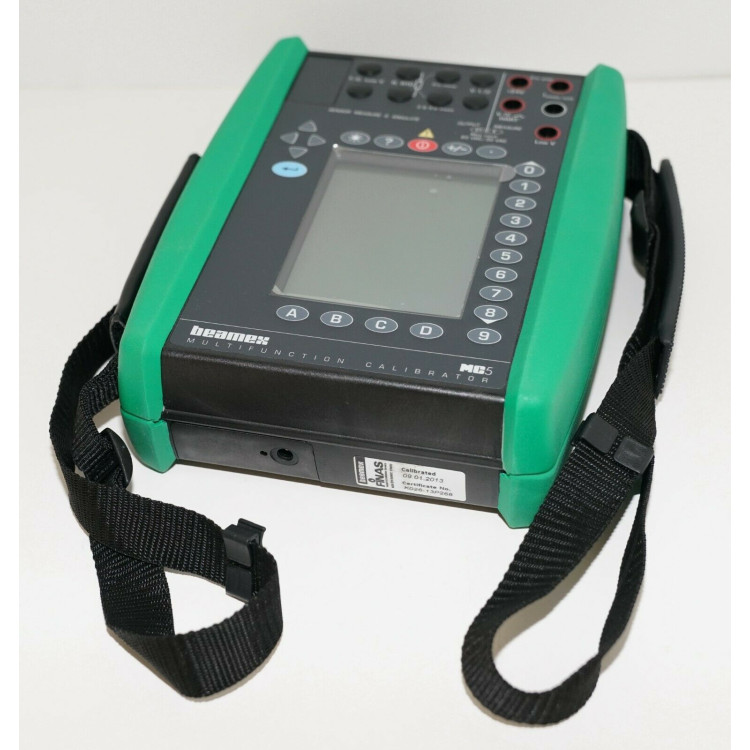

This item is a good condition used Beamex MC5 Multifunction Process Calibrator. *Does not have ET Module, TC, or HART communication.* Calibrated to NIST Traceable Standards on September 01, 2022. This unit has INT1C (-1 to 1 bar, -14.5 to 15 psi) internal pressure module. Come with Beamex case, red/black Fluke banana test leads with hart tip probes, red/black alligator clips, Beamex AC adapter/charger, and certificate of calibration. All pictures are of the actual unit and accessories.

Accuracy guaranteed

The MC5 is a high accuracy calibrator. Each MC5 calibrator was delivered with a traceable, accredited calibration certificate.

Made for tough use

The MC5 has IP65-rated robust casing with integrated impact protectors.

Modularity means versatility

The modular construction of MC5 provides flexibility.

For instance, when the MC5 was still in production, a customer could buy it as a pressure or temperature stand-alone calibrator, and then later expand it into a data-logging, documenting multifunction calibrator.

Communication with calibration software

Using the MC5 together with calibration software provides you with a complete documenting calibration system that produces calibration certificates automatically.

• Internal pressure modules
• External pressure modules
• RTD measurement / simulation
• Resistance measurement / simulation
• TC measurement / simulation
• Current measurement / generation
• Voltage measurement / generation
• Low voltage measurement / generation
• Frequency measurement / generation
• Pulse counting / generation
• Switch testing
• PRT sensor customization functionality
• Optional Communication with software
• Optional HART® communication
• Optional Multichannel datalogging
• Foundation Fieldbus H1 or Profibus PA communication

Usability:

• Large graphical display
• Multilingual
• Menu-based interface

Documenting capability:

Calibration results are automatically stored in the calibrator’s memory.

Calibration results are automatically transferred from the calibrator’s memory to a computer or fully integrated calibration management system.
