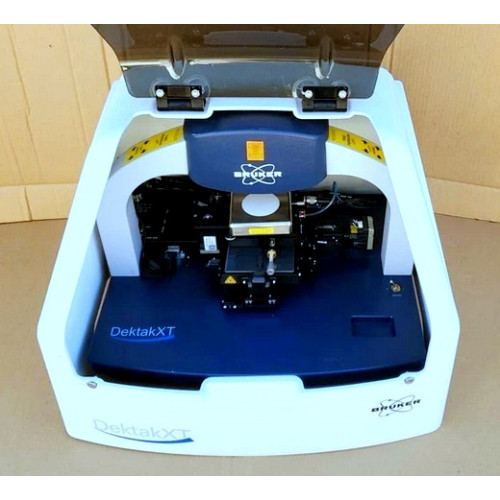

Flash Sale ! Bruker DektakXT Stylus Profilometer Unit only USD $6890.00

Ready Stock

Condition : New

Fast Shipping

Specifications :

• Stylus: Diamond tip with selectable force (1-15 mg), options for different radii (e.g., 2µm, 12.5µm).

• Vertical Measurement:

• Range: Up to 1 mm (1000 µm).

• Resolution: 1 Å (0.1 nm) at 6.55 µm range.

• Repeatability: < 4Å (1 sigma) on ≤1 µm steps.

• Scan Capabilities:

• Scan Length: 55 mm standard, with stitching for up to 200 mm (8-inch) scans.

• Data Points: Up to 120,000 per scan.

• Stage: Motorized X/Y stage, 360° rotation, supports up to 200mm wafers/samples.

• Imaging: Integrated color camera with selectable magnification.

• Features: 3D mapping, automation, soft materials mode, environmental enclosure.
