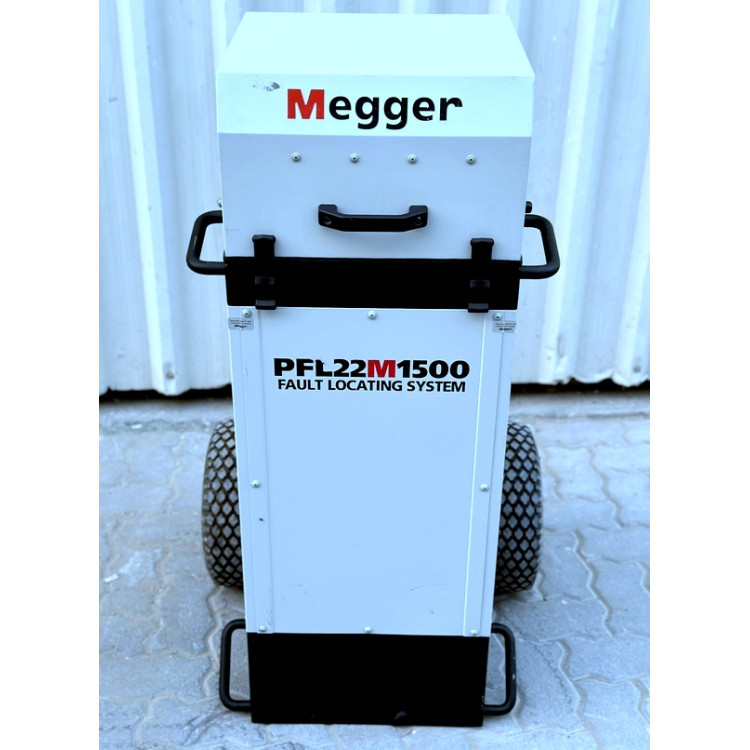

Flash Sale ! Megger PFL22M1500 Cable Fault Locator System only USD $9950.00

Stock : Available & Ready to Ship

Condition : Used like New

Warranty : 1 Year

Specifications :

• Surge Generator: 8/16 kV @ 1500 Joules (surge/thump)

• DC Insulation Testing: 0 to 20 kV (burn capability up to 115 mA)

• Time Domain Reflectometry (TDR):Integrated 10.4" XGA color display

• TDR Pulse Width    : 50 ns to 10 µs, plus auto

• TDR Pulse Amplitude: 25 V into 50 Ω

• Pre-location Methods: Arc reflection, arc reflection plus, differential arc reflection, impulse current, pulse echo

• Power: AC input, or 12V DC input via optional inverter

• Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F)

• IP Rating: IP64 (when flaps are closed)

• Weight: 131 kg (290 lbs)

• Dimensions: 965 mm (H) x 536 mm (W) x 503 mm (D) (38 in x 21 in x 20 in)
