New Hioki PQ3198 Power Quality Analyzers

The PQ3198 offers a full suite of power quality measurements, including voltage, current, power, harmonics, transient disturbances, and more. It can analyze up to 500 different parameters, allowing for detailed and in-depth analysis of power system performance.

Features:

• Transient voltage : 2 MHz sampling

• Frequency cycle : Calculated as one cycle, 40 to 70 Hz

• Voltage (1/2) RMS: one cycle calculation refreshed every half cycle

• Current (1/2) RMS: half-cycle calculation

• Voltage swell, Voltage dips, Voltage interruption

• Inrush current

• Voltage waveform comparison

• Instantaneous flicker value: As per IEC61000-4-15

• 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz

• 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz

• Voltage waveform peak, Current waveform peak

• Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency

• High-order harmonic component (voltage/ current): 2 kHz to 80 kHz

• Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders

• Harmonic voltage-current phase angle: 1th to 50 th orders

• Total harmonic distortion factor (voltage/ current)

• Inter harmonic (voltage/ current): 0.5 th to 49.5 th order

• K Factor (multiplication factor)

• IEC Flicker, Δ V10 Flicker

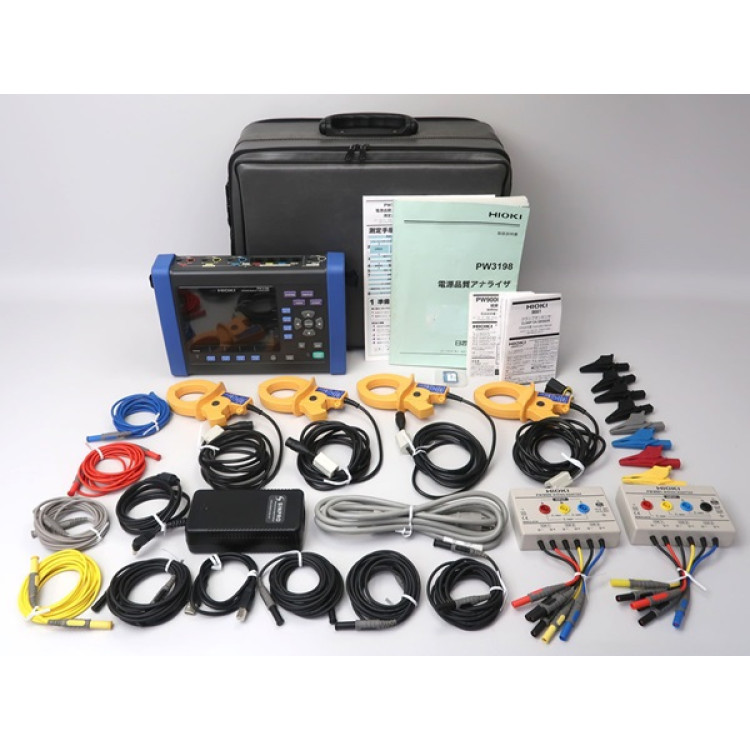

Includes :

• Instruction manual

• Measurement guide

• Voltage Cord L1000set (Red/ Yellow/ Blue/ Gray each, 1 Black 4, 3m (9.84ft) length Alligator clip ×8)

• Color clip

• AC Adapter Z1002 ×1

• Strap

• USB cable (1 m 3.28 ft length)

• Battery pack Z1003

• SD Memory Card 2GB Z4001

• Application software (PQ ONE)

• 1 Year Warranty
