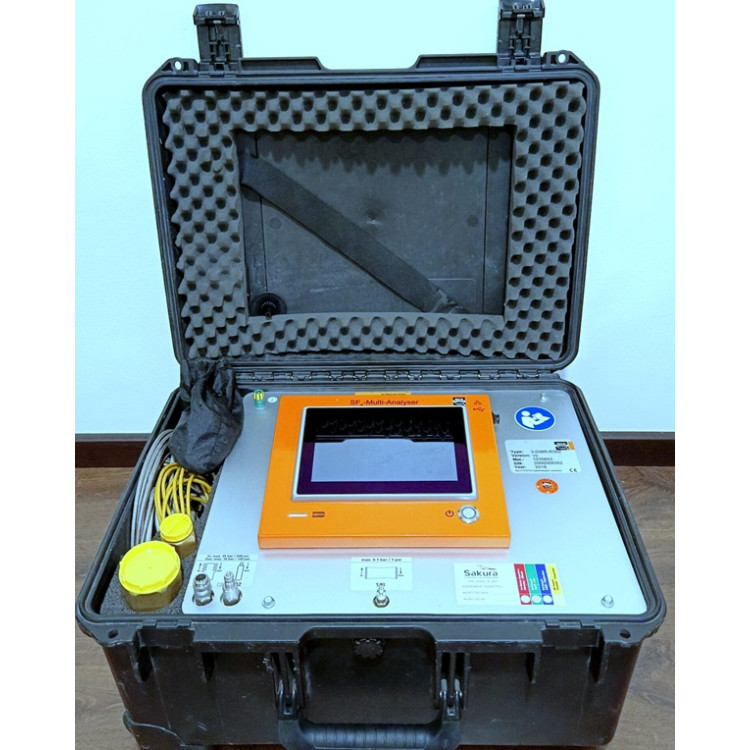

Hot Sale ! Dilo SF6 3-038R-R302 Multi Analyzer Complete System only USD $6800.00

Ready Stock

1 Year Warranty

Specifications:

• SF6 Purity Measurement: Measures SF6 volume percentage.

• Moisture Measurement: Measures moisture concentration in dew point (°C or °F) or ppmV.

• SO2 Measurement: Measures SO2 concentration (0-100 ppmV).

• Optional Sensors: Can be equipped with sensors for HF, H2S, and CO.

• Inlet Pressure: 0.2 - 35 bar.

• Operating Temperature: -10 to +40 °C.

• Ambient Moisture: Max. 90 % relative moisture (non-condensing).

• Operating Voltage: 85-264 VAC, 47-63 Hz or battery operation.

• Data Storage: Stores up to 500 measurements.

• Interface: USB/LAN.

• Flow Rate: 20 L/h (SF6).

• Measuring Time: Variable, up to 9 minutes.

• Display: 7-inch color touchscreen.
• Dimensions: 625 x 297 x 500 mm (W x H x D).

• Weight: 27.5 kg.
