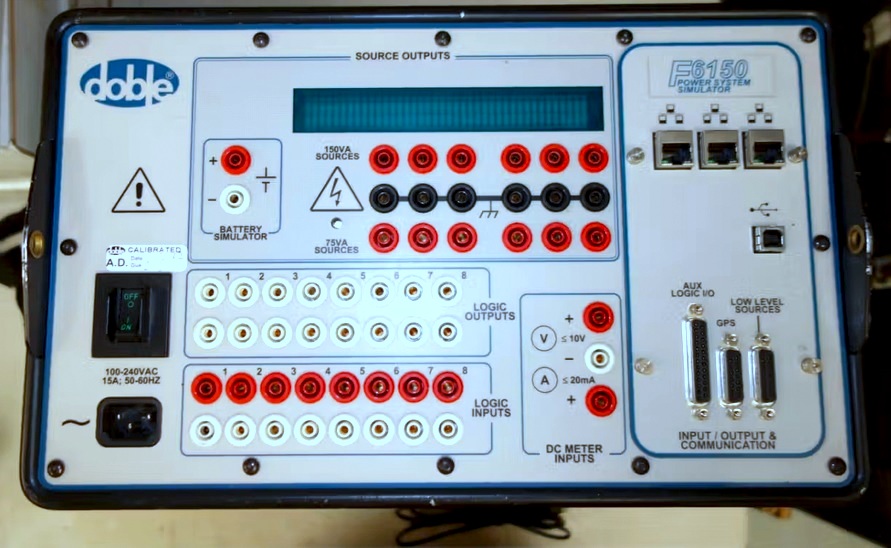

Doble F6150 Power System Simulator Complete Kit

Get Special Discount For Doble F6150 Power System Simulator Complete Kit Only USD $3950.00

Warranty : 1 Year

Used Like New Condition

Specifications Product:

AC Voltage SourcesUp to 6 sources : Ranges configurable: 1 x 600 V, 3 x 300 V, or 6 x 150 V. Power: up to 150 VA per channel.
AC Current SourcesUp to 6 sources : Ranges configurable: 1 x 180 A, 3 x 60 A, or 6 x 30 A. Power: up to 225 VA per channel.
DC Output : Continuous DC voltage and current sources with high-burden capability.
Logic I/O : 8 logic inputs (isolated, configurable as voltage sense or contact sense) and 8 logic outputs (combination of high-speed electronic and FET relays).
Battery Simulator : Variable DC output ranging from 6 V to 300 V DC, up to 90 W power.
Communication : Supports IEC 61850 (GOOSE) and Sampled Values (SV) for modern digital substation testing.
Power Supply : 90-264 VAC, 47-63 Hz.
Dimensions & Weight : ~15″ x 9.5″ x 18″ (38 x 24 x 45.7 cm) ~42 lbs (19 kg).
